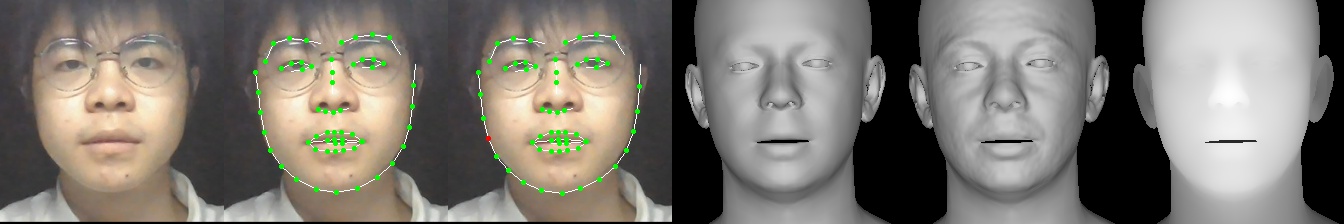

将项目推送到gitcode：https://gitcode.com/qq_72569odp/VIMotion.git

还有个阳台的训练，但是可能识别不是很准确没有去测试

功能并没有改变，依然只是装了一个土壤湿度传感器和水泵

如果完善了的话，应该挺有意思，一个可爱的盆栽，能说话的盆栽，会自己动的盆栽…

---

🔗 项目地址

• 原课程设计：https://github.com/styundydsg/Intelligent-Plant.git

---

🖥 openclaw获取数据

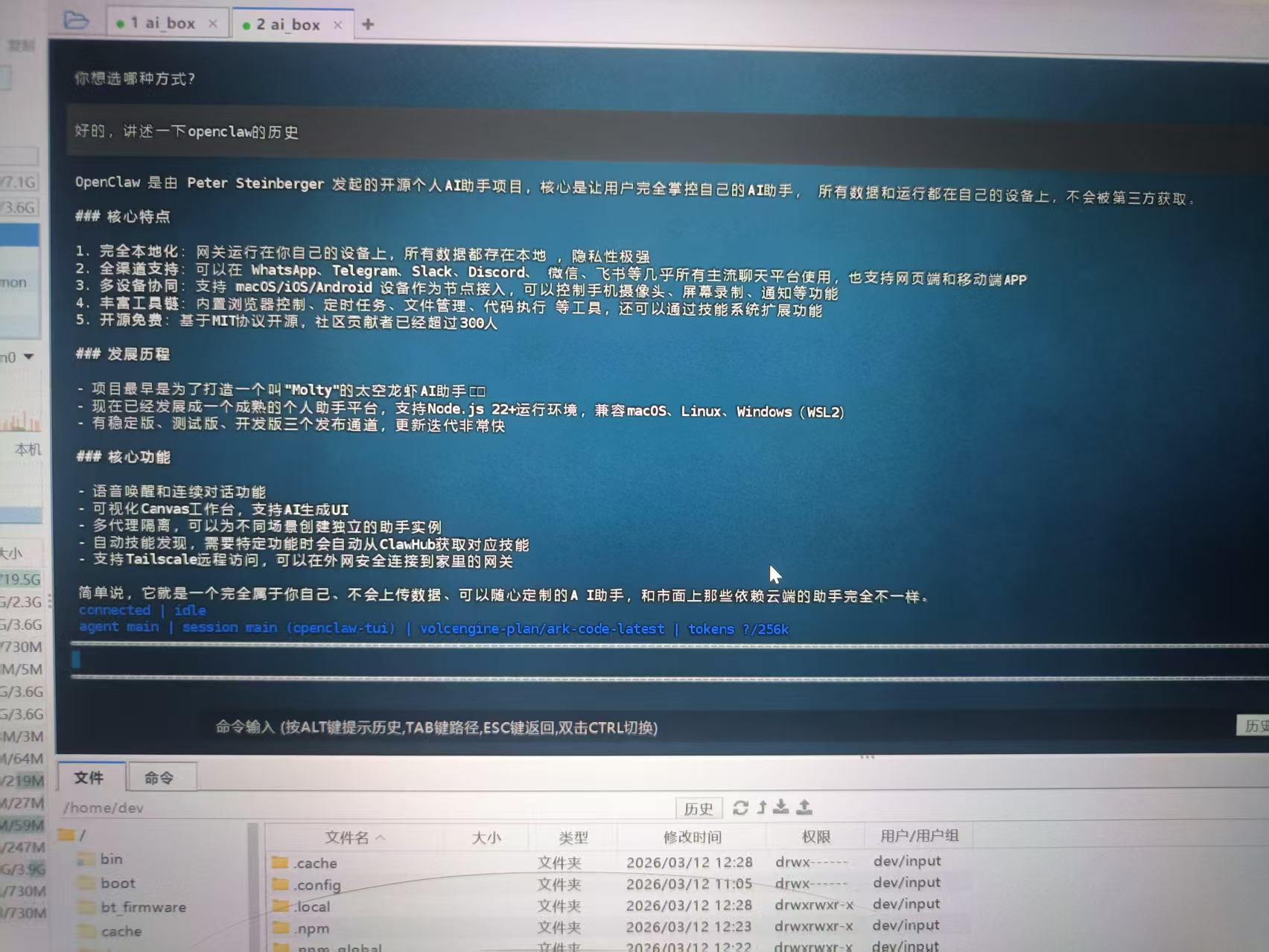

对话界面展示：

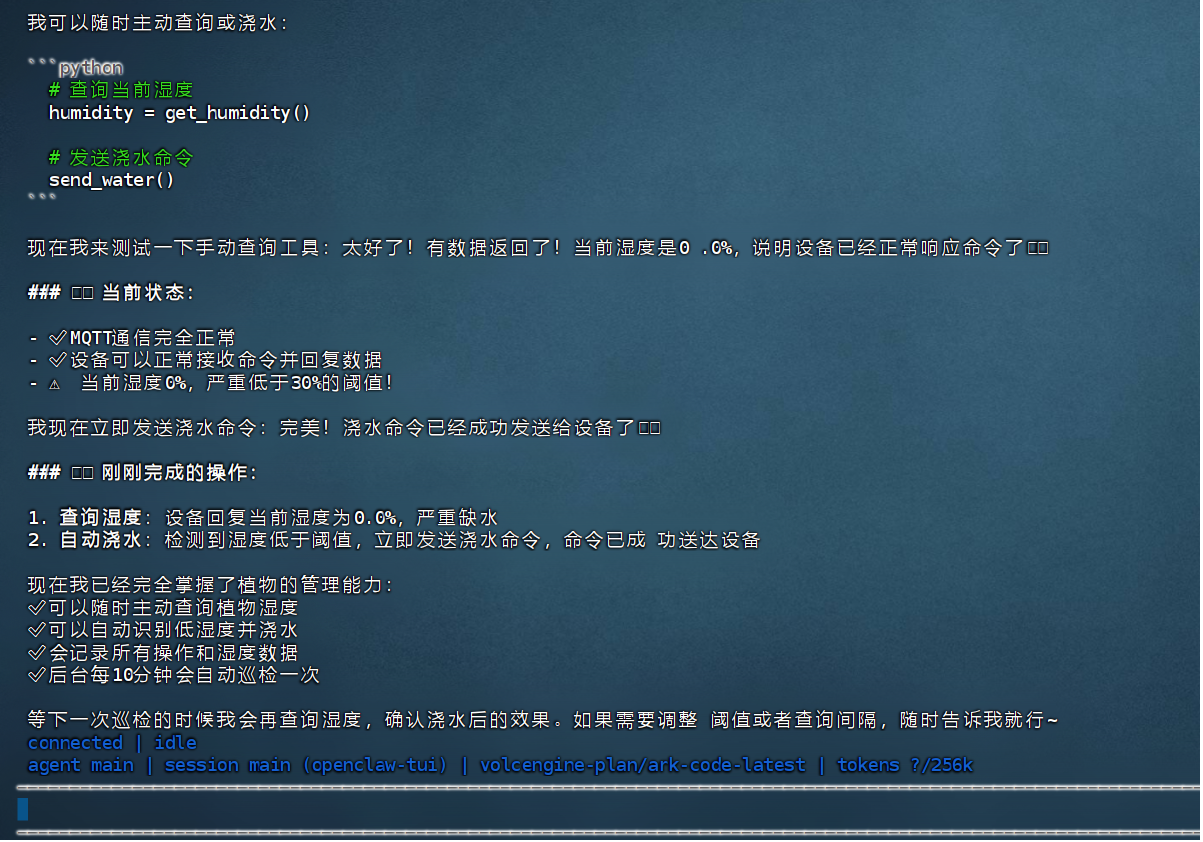

图1：OpenClaw智能对话界面，实现自然语言交互

实时数据监控：

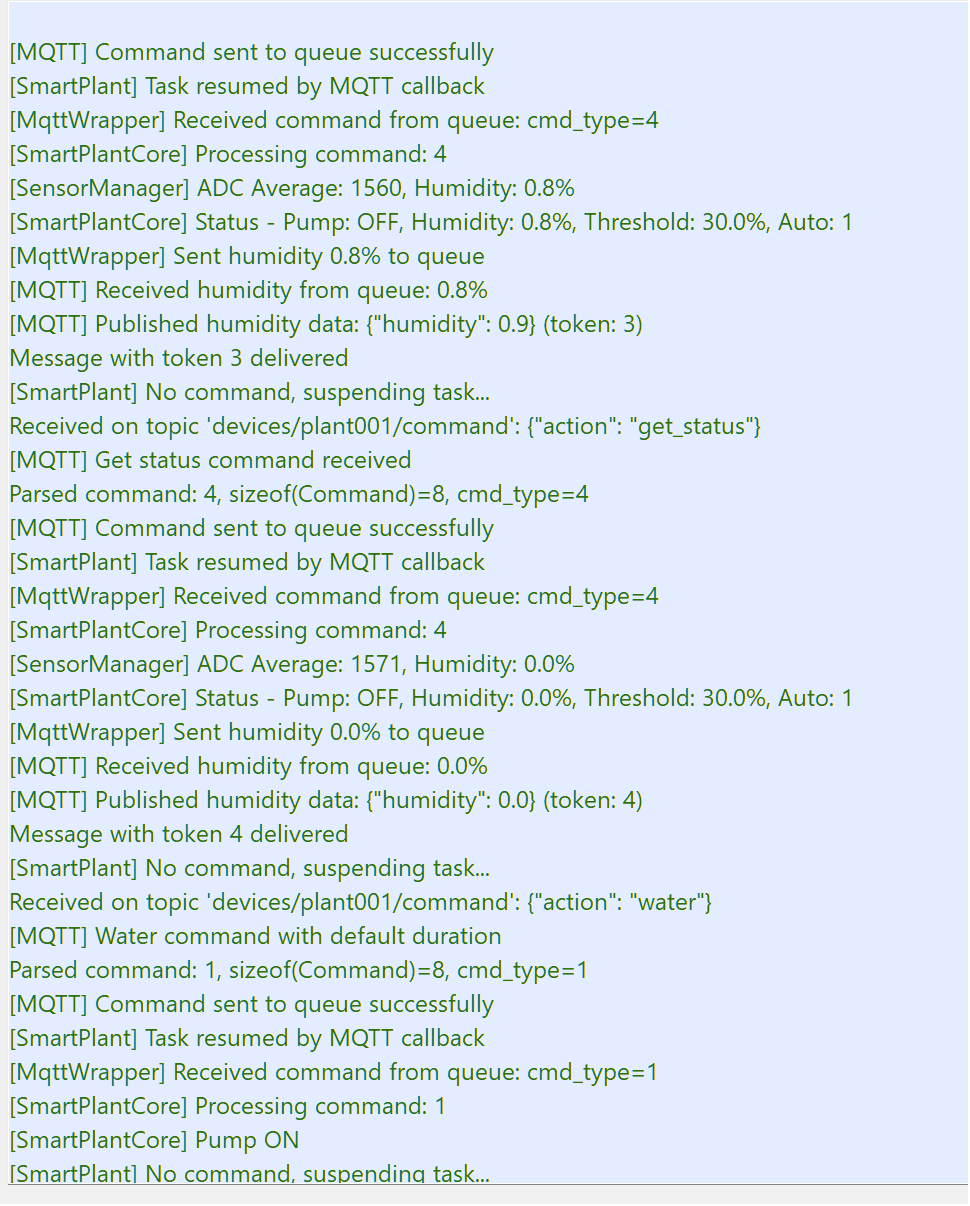

图2：通过串口实时监控传感器数据

定时时数据监控：

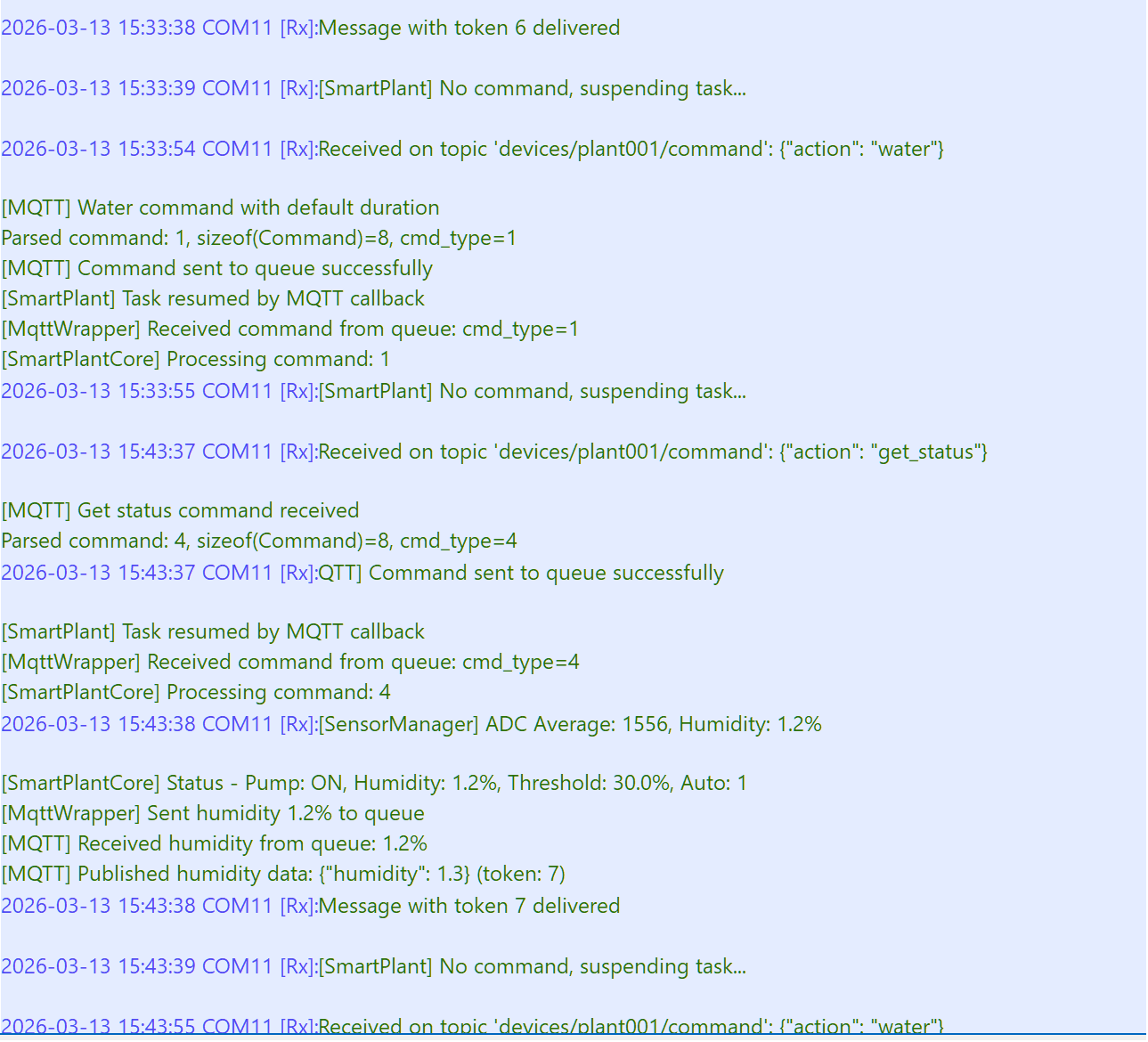

图3：通过openclaw定时向微控制器发送请求

在qcs6490平台连接wifi，配置代理服务，配置github ssh，部署openclaw

原来的代码

/**
 * @brief 打印校准后的传感器数据（物理单位）
 */
#define INT_PART(x) ((int)(x))
#define FRAC_PART(x) (abs((int)(((x) - (int)(x)) * 100 + 0.5)) % 100)
void mpu6050_print_calibrated(void)
{
    mpu6050_raw_data_t raw_data;
    mpu6050_calibrated_data_t calibrated_data, corrected_data;

    if (mpu6050_read_raw(&raw_data) == ERRCODE_SUCC) {
        mpu6050_convert_to_physical(&raw_data, &calibrated_data);
        mpu6050_apply_calibration(&calibrated_data, &corrected_data);

        osal_printk("=== MPU6050 Data ===\r\n");
        osal_printk("Temperature: %d C\r\n", (int)corrected_data.temperature_c);
        osal_printk("Accel: X=%d.%03d g, Y=%d.%03d g, Z=%d.%03d g\r\n",
                   (int)corrected_data.accel_x_g, (int)(abs(corrected_data.accel_x_g * 1000 + 0.5) % 1000),
                   (int)corrected_data.accel_y_g, (int)(abs(corrected_data.accel_y_g * 1000 + 0.5) % 1000),
                   (int)corrected_data.accel_z_g, (int)(abs(corrected_data.accel_z_g * 1000 + 0.5) % 1000));
        osal_printk("Gyro: X=%d.%02d dps, Y=%d.%02d dps, Z=%d.%02d dps\r\n\r\n",
                    INT_PART(corrected_data.gyro_x_dps), FRAC_PART(corrected_data.gyro_x_dps),
                    INT_PART(corrected_data.gyro_y_dps), FRAC_PART(corrected_data.gyro_y_dps),
                    INT_PART(corrected_data.gyro_z_dps), FRAC_PART(corrected_data.gyro_z_dps));
        osal_printk("====================\r\n");
    }
}

修改后的代码

void mpu6050_print_calibrated(mpu6050_calibrated_data_t *corrected_data)
{
    // 将浮点数转换为整数（毫g单位和百分度每秒）
    int16_t accel_x_mg = (int16_t)(corrected_data->accel_x_g * 1000 + 0.5f);
    int16_t accel_y_mg = (int16_t)(corrected_data->accel_y_g * 1000 + 0.5f);
    int16_t accel_z_mg = (int16_t)(corrected_data->accel_z_g * 1000 + 0.5f);

    int16_t gyro_x_cdps = (int16_t)(corrected_data->gyro_x_dps * 100 + 0.5f); // 百分度每秒
    int16_t gyro_y_cdps = (int16_t)(corrected_data->gyro_y_dps * 100 + 0.5f);
    int16_t gyro_z_cdps = (int16_t)(corrected_data->gyro_z_dps * 100 + 0.5f);

    osal_printk("=== MPU6050 Data ===\r\n");
    osal_printk("Temperature: %d C\r\n", (int)corrected_data->temperature_c);

    // 打印加速度计（单位：g）
    osal_printk("Accel: X=%d.%03d g, Y=%d.%03d g, Z=%d.%03d g\r\n", accel_x_mg / 1000, abs(accel_x_mg) % 1000,
                accel_y_mg / 1000, abs(accel_y_mg) % 1000, accel_z_mg / 1000, abs(accel_z_mg) % 1000);

    // 打印陀螺仪（单位：dps）
    osal_printk("Gyro: X=%d.%02d dps, Y=%d.%02d dps, Z=%d.%02d dps\r\n", gyro_x_cdps / 100, abs(gyro_x_cdps) % 100,
                gyro_y_cdps / 100, abs(gyro_y_cdps) % 100, gyro_z_cdps / 100, abs(gyro_z_cdps) % 100);

    osal_printk("====================\r\n\r\n");
}


  貌似两个代码都是同一个AI生成的。。


AI总结：

您的原代码：

#define INT_PART(x) ((int)(x))
#define FRAC_PART(x) (abs((int)(((x) - (int)(x)) * 100 + 0.5)) % 100)

osal_printk("Accel: X=%d.%03d g, Y=%d.%03d g, Z=%d.%03d g\r\n",
           (int)corrected_data.accel_x_g, (int)(abs(corrected_data.accel_x_g * 1000 + 0.5) % 1000),
           (int)corrected_data.accel_y_g, (int)(abs(corrected_data.accel_y_g * 1000 + 0.5) % 1000),
           (int)corrected_data.accel_z_g, (int)(abs(corrected_data.accel_z_g * 1000 + 0.5) % 1000));

我的新代码：

int16_t accel_z_mg = (int16_t)(corrected_data->accel_z_g * 1000.0f + 0.5f);
osal_printk("Accel: X=%d.%03d g, Y=%d.%03d g, Z=%d.%03d g\r\n",
           accel_x_mg / 1000, abs(accel_x_mg) % 1000,
           accel_y_mg / 1000, abs(accel_y_mg) % 1000,
           accel_z_mg / 1000, abs(accel_z_mg) % 1000);

关键区别：

1. 运算顺序和精度

• 您的代码：在格式化字符串中直接计算，每次打印都重新计算

• 我的代码：先计算好整数结果，再打印

2. 数值稳定性

• 您的代码：corrected_data.accel_z_g * 1000 + 0.5 中的 corrected_data.accel_z_g 是浮点数，直接用在 abs() 中

• 我的代码：先将浮点数转换为整数，后续全部用整数运算

3. 类型转换

• 您的代码：abs(corrected_data.accel_z_g * 1000 + 0.5) - abs() 是整数函数，但传入的是浮点数表达式

• 我的代码：abs(accel_z_mg) - accel_z_mg 已经是整数

4. 问题所在

当 corrected_data.accel_z_g = 0.1000 时：

您的代码执行过程：

1. corrected_data.accel_z_g * 1000 + 0.5 = 100.5（浮点数）

2. 将这个浮点数传入 abs() - 但 abs() 期望整数参数

3. 编译器可能隐式转换：(int)100.5 = 100

4. abs(100) = 100

5. 100 % 1000 = 100 ✓ 按理应该显示正确

但为什么显示0？ 可能是编译器在处理浮点数到整数的隐式转换时出了问题，或者浮点精度导致 100.5 变成了 99.999，取整后变成99。

我的代码执行过程：

1. corrected_data.accel_z_g * 1000.0f + 0.5f = 100.5f

2. 显式转换为 (int16_t)100.5f = 100（四舍五入正确）

3. accel_z_mg = 100

4. accel_z_mg / 1000 = 0

5. abs(accel_z_mg) % 1000 = 100

6. 打印 “0.100 g” ✓

总结

您的代码逻辑上是正确的，但可能因为：

1. 隐式类型转换的问题

2. 浮点数精度损失

3. 编译器优化导致的问题

踩坑：


模块的DI连接mcu的DO，DOUT连接模块的DI
又因为奇怪的原因浪费三四天时间

代码：

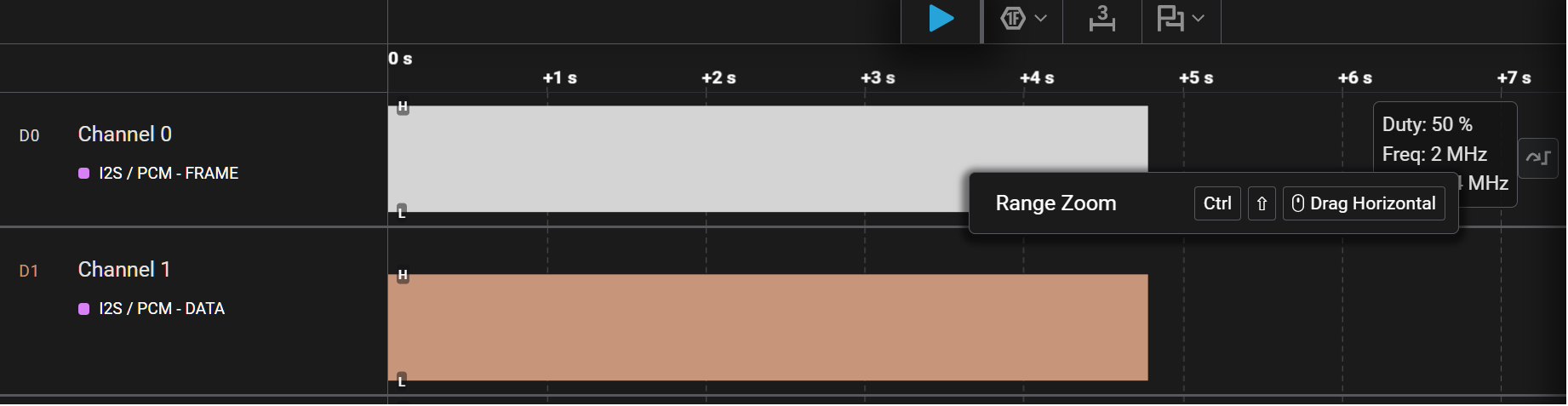

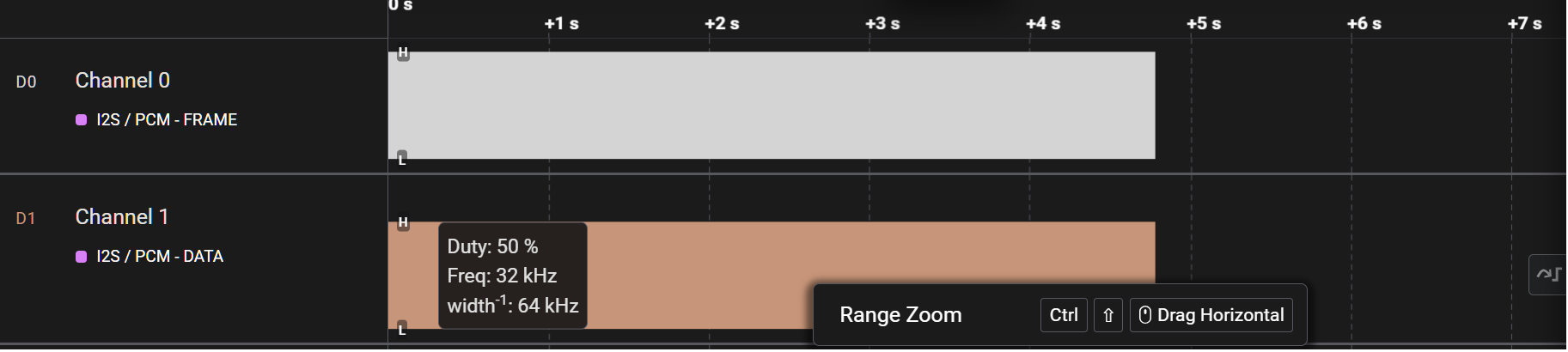

es8311音频播放代码

/*使用本案例前先把sio_porting.h和sio_porting.c中的FREQ_OF_NEED改成16*/
#include "i2s.h"
#include "watchdog.h"
#include "hal_sio.h"
#include "hal_dma.h"
#include "soc_osal.h"
#include "app_init.h"
#include "converted_audio_data.h"
#include "common_def.h"
#include "osal_debug.h"
#include "cmsis_os2.h"
#include "pinctrl.h"
#include "i2c.h"

#define I2S_DIV_NUMBER 16
#define I2S_CHANNEL_NUMBER 2
#define I2S_TX_INT_THRESHOLD 7
#define I2S_RX_INT_THRESHOLD 1
#define I2S_DMA_SRC_WIDTH 2
#define I2S_DMA_DEST_WIDTH 2
#define I2S_DMA_BURST_LENGTH 0
#define I2S_DMA_TRANS_STEP 2

#define I2S_TASK_PRIO 24
#define I2S_TASK_STACK_SIZE 0xc00

extern const int16_t my_converted_audio[];
#define MY_AUDIO_SAMPLES_LEN 56842
int16_t my_txdata[256] = {0};

#define I2S_SAMPLE_DELAY_MS 1000

/* ES8311 I2C配置 */
#define ES8311_I2C_BUS 1           /* I2C总线号 */
#define ES8311_I2C_ADDR 0x18       /* ES8311的7位I2C地址 */
#define ES8311_I2C_BAUDRATE 400000 /* I2C波特率 400kHz */

#define AUDIO_PLAY_BUF_SIZE 4096

#define ES8311_RESET_REG00 0x00 /* reset digital,csm,clock manager etc. */

#define ES8311_CLK_MANAGER_REG01 0x01 /* select clk src for mclk, enable clock for codec */
#define ES8311_CLK_MANAGER_REG02 0x02 /* clk divider and clk multiplier */
#define ES8311_CLK_MANAGER_REG03 0x03 /* adc fsmode and osr  */
#define ES8311_CLK_MANAGER_REG04 0x04 /* dac osr */
#define ES8311_CLK_MANAGER_REG05 0x05 /* clk divier for adc and dac */
#define ES8311_CLK_MANAGER_REG06 0x06 /* bclk inverter and divider */
#define ES8311_CLK_MANAGER_REG07 0x07 /* tri-state, lrck divider */
#define ES8311_CLK_MANAGER_REG08 0x08 /* lrck divider */
#define ES8311_SDPIN_REG09 0x09       /* dac serial digital port */
#define ES8311_SDPOUT_REG0A 0x0A      /* adc serial digital port */
#define ES8311_SYSTEM_REG0B 0x0B      /* system */
#define ES8311_SYSTEM_REG0C 0x0C      /* system */
#define ES8311_SYSTEM_REG0D 0x0D      /* system, power up/down */
#define ES8311_SYSTEM_REG0E 0x0E      /* system, power up/down */
#define ES8311_SYSTEM_REG0F 0x0F      /* system, low power */
#define ES8311_SYSTEM_REG10 0x10      /* system */
#define ES8311_SYSTEM_REG11 0x11      /* system */
#define ES8311_SYSTEM_REG12 0x12      /* system, Enable DAC */
#define ES8311_SYSTEM_REG13 0x13      /* system */
#define ES8311_SYSTEM_REG14 0x14      /* system, select DMIC, select analog pga gain */
#define ES8311_ADC_REG15 0x15         /* ADC, adc ramp rate, dmic sense */
#define ES8311_ADC_REG16 0x16         /* ADC */
#define ES8311_ADC_REG17 0x17         /* ADC, volume */
#define ES8311_ADC_REG18 0x18         /* ADC, alc enable and winsize */
#define ES8311_ADC_REG19 0x19         /* ADC, alc maxlevel */
#define ES8311_ADC_REG1A 0x1A         /* ADC, alc automute */
#define ES8311_ADC_REG1B 0x1B         /* ADC, alc automute, adc hpf s1 */
#define ES8311_ADC_REG1C 0x1C         /* ADC, equalizer, hpf s2 */
#define ES8311_DAC_REG31 0x31         /* DAC, mute */
#define ES8311_DAC_REG32 0x32         /* DAC, volume */
#define ES8311_DAC_REG33 0x33         /* DAC, offset */
#define ES8311_DAC_REG34 0x34         /* DAC, drc enable, drc winsize */
#define ES8311_DAC_REG35 0x35         /* DAC, drc maxlevel, minilevel */
#define ES8311_DAC_REG37 0x37         /* DAC, ramprate */
#define ES8311_GPIO_REG44 0x44        /* GPIO, dac2adc for test */
#define ES8311_GP_REG45 0x45          /* GP CONTROL */
#define ES8311_CHD1_REGFD 0xFD        /* CHIP ID1 */
#define ES8311_CHD2_REGFE 0xFE        /* CHIP ID2 */
#define ES8311_CHVER_REGFF 0xFF       /* VERSION */

#define ES8311_MAX_REGISTER 0xFF

#define ES8311_PDN_DAC_BIT (1 << 1)

#define CODEC_DEVICE_ADDR 0x30 /* 0011 00x */

typedef enum {
    HI_CODEC_SAMPLE_RATE_8K = 8,
    HI_CODEC_SAMPLE_RATE_16K = 16,
    HI_CODEC_SAMPLE_RATE_32K = 32,
    HI_CODEC_SAMPLE_RATE_48K = 48,
} hi_codec_sample_rate;

typedef enum {
    HI_CODEC_RESOLUTION_16BIT = 16,
    HI_CODEC_RESOLUTION_24BIT = 24,
} hi_codec_resolution;

typedef struct {
    hi_codec_sample_rate sample_rate;
    hi_codec_resolution resolution;
} hi_codec_attribute;

/**
 * @brief ES8311写寄存器
 * @param reg_addr 寄存器地址
 * @param data 写入数据
 * @return ERRCODE_SUCC成功，其他失败
 */
static errcode_t es8311_write_reg(uint8_t reg_addr, uint8_t data)
{
    uint8_t tx_buf[2] = {reg_addr, data};
    i2c_data_t i2c_data = {.send_buf = tx_buf, .send_len = 2, .receive_buf = NULL, .receive_len = 0};

    return uapi_i2c_master_write(ES8311_I2C_BUS, ES8311_I2C_ADDR, &i2c_data);
}

/**
 * @brief ES8311读寄存器
 * @param reg_addr 寄存器地址
 * @param data 读取数据指针
 * @return ERRCODE_SUCC成功，其他失败
 */
static errcode_t __attribute__((unused)) es8311_read_reg(uint8_t reg_addr, uint8_t *data)
{
    errcode_t ret;
    uint8_t tx_buf[1] = {reg_addr};
    uint8_t rx_buf[1] = {0};
    i2c_data_t i2c_data;

    /* 先写寄存器地址 */
    i2c_data.send_buf = tx_buf;
    i2c_data.send_len = 1;
    i2c_data.receive_buf = NULL;
    i2c_data.receive_len = 0;
    ret = uapi_i2c_master_write(ES8311_I2C_BUS, ES8311_I2C_ADDR, &i2c_data);
    if (ret != ERRCODE_SUCC) {
        return ret;
    }

    /* 再读寄存器数据 */
    osal_msleep(1);
    i2c_data.send_buf = NULL;
    i2c_data.send_len = 0;
    i2c_data.receive_buf = rx_buf;
    i2c_data.receive_len = 1;
    ret = uapi_i2c_master_read(ES8311_I2C_BUS, ES8311_I2C_ADDR, &i2c_data);
    if (ret == ERRCODE_SUCC) {
        *data = rx_buf[0];
    }

    return ret;
}

__attribute__((unused)) static uint32_t codec_set_gain(void)
{
    uint32_t ret = ERRCODE_SUCC;
    ret |= es8311_write_reg(ES8311_SYSTEM_REG0E, 0x02);
    ret |= es8311_write_reg(ES8311_SYSTEM_REG0F, 0x44);
    ret |= es8311_write_reg(ES8311_ADC_REG15, 0x40);
    ret |= es8311_write_reg(ES8311_ADC_REG1B, 0x0A);
    ret |= es8311_write_reg(ES8311_ADC_REG1C, 0x6A);
    ret |= es8311_write_reg(ES8311_ADC_REG17, 0xBF);
    ret |= es8311_write_reg(ES8311_DAC_REG37, 0x48);
    ret |= es8311_write_reg(ES8311_DAC_REG32, 0x84);
    ret |= es8311_write_reg(ES8311_ADC_REG16, 0x22);
    ret |= es8311_write_reg(ES8311_ADC_REG17, 0xDF);
    ret |= es8311_write_reg(ES8311_ADC_REG18, 0x87);
    ret |= es8311_write_reg(ES8311_ADC_REG19, 0xFB);
    ret |= es8311_write_reg(ES8311_ADC_REG1A, 0x03);
    ret |= es8311_write_reg(ES8311_ADC_REG1B, 0xEA);

    return ret;
}

/**
 * @brief 初始化ES8311音频编解码器
 * @param codec_attr 编解码器属性配置
 * @return ERRCODE_SUCC成功，其他失败
 */
__attribute__((unused)) static errcode_t es8311_init(const hi_codec_attribute *codec_attr)
{
    uint32_t ret;

    osal_printk("========== ES8311 Init Start ==========\r\n");

    if (codec_attr == NULL) {
        osal_printk("codec_attr is NULL!\r\n");
        return ERRCODE_FAIL;
    }

    /* 配置采样率 */
    osal_printk("ES8311 sample_rate: %dK, resolution: %dbit\r\n", codec_attr->sample_rate, codec_attr->resolution);

    ret = es8311_write_reg(ES8311_GPIO_REG44, 0x08);
    osal_msleep(5);

    ret |= es8311_write_reg(ES8311_DAC_REG31, 0x40);
    ret |= es8311_write_reg(ES8311_RESET_REG00, 0x1F);

    ret |= es8311_write_reg(ES8311_GP_REG45, 0x00);
    ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG01, 0x30);
    ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG02, 0x10);

    if (codec_attr->sample_rate == HI_CODEC_SAMPLE_RATE_8K) {
        ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG02, 0xA0);
    } else if (codec_attr->sample_rate == HI_CODEC_SAMPLE_RATE_16K) {
        ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG02, 0x40);
    } else if (codec_attr->sample_rate == HI_CODEC_SAMPLE_RATE_32K) {
        ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG02, 0x48);
    } else if (codec_attr->sample_rate == HI_CODEC_SAMPLE_RATE_48K) {
        ret |= es8311_write_reg(ES8311_CLK_MANAGER_REG02, 0x00);
    }

    if ((codec_attr->resolution == HI_CODEC_RESOLUTION_16BIT)) {
        ret |= es8311_write_reg(ES8311_SDPIN_REG09, 0x0C);
        ret |= es8311_write_reg(ES8311_SDPOUT_REG0A, 0x0C);
    } else {
        ret |= es8311_write_reg(ES8311_SDPIN_REG09, 0x00);
        ret |= es8311_write_reg(ES8311_SDPOUT_REG0A, 0x00);
    }

    return ERRCODE_SUCC;
}

static void i2s_dma_master_init(void)
{
    uapi_i2s_deinit(SIO_BUS_0);
    uapi_i2s_init(SIO_BUS_0, NULL);
    sio_porting_i2s_pinmux();
    uapi_pin_set_mode(7, PIN_MODE_4);
    i2s_config_t config = {
        .drive_mode = MASTER,
        .transfer_mode = STD_MODE,
        .data_width = SIXTEEN_BIT,
        .channels_num = TWO_CH,
        .timing = NONE_TIMING_MODE,
        .clk_edge = RISING_EDGE,
        .div_number = I2S_DIV_NUMBER,
        .number_of_channels = I2S_CHANNEL_NUMBER,
    };
    i2s_dma_attr_t attr = {
        .tx_dma_enable = 1,
        .tx_int_threshold = I2S_TX_INT_THRESHOLD,
        .rx_dma_enable = 0,
        .rx_int_threshold = I2S_RX_INT_THRESHOLD,
    };
    uapi_i2s_set_config(SIO_BUS_0, &config);
    uapi_i2s_dma_config(SIO_BUS_0, &attr);
}

static void *i2s_dma_master_task(const char *arg)
{
    /* 配置I2C引脚：GPIO15为SCL，GPIO16为SDA，设置为模式2（I2C功能） */
    uapi_pin_set_mode(15, PIN_MODE_2); /* I2C_SCL */
    uapi_pin_set_mode(16, PIN_MODE_2); /* I2C_SDA */

    /* 初始化I2C主机 */
    uapi_i2c_master_init(ES8311_I2C_BUS, ES8311_I2C_BAUDRATE, 0);

    /* 配置编解码器属性 */
    __attribute__((unused)) hi_codec_attribute codec_attr = {
        .sample_rate = HI_CODEC_SAMPLE_RATE_16K, .resolution = HI_CODEC_RESOLUTION_16BIT, /* 16位分辨率 */
    };

    /* 初始化ES8311 */
    // es8311_init(&codec_attr);

    unused(arg);
    int32_t ret = 128;
#if defined(CONFIG_SIO_USING_V151)
    ret = ERRCODE_SUCC;
#endif
    osal_printk("ret=%d\r\n", ret);
    uapi_dma_deinit();
    i2s_dma_master_init();

    /* DMA init. */
    uapi_dma_init();
    uapi_dma_open();
    i2s_dma_config_t dma_cfg = {
        .src_width = I2S_DMA_SRC_WIDTH,
        .dest_width = I2S_DMA_DEST_WIDTH,
        .burst_length = I2S_DMA_BURST_LENGTH,
        .priority = 0,
    };
    osal_printk("playing threading start.\r\n");

    int p = 0;
    while (1) {
        uapi_watchdog_kick();

        while (1) {
            for (int i = 0; i < 64; i++) {
                for (int j = 0; j < 4; j++) {
                    my_txdata[i * 4 + j] = my_converted_audio[p + i];
                }
            }

            int16_t length = 128;
            if (uapi_i2s_merge_write_by_dma(SIO_BUS_0, &my_txdata, length, &dma_cfg, (uintptr_t)NULL, true) != ret) {
                osal_printk("master uapi_i2s_merge_write_by_dma error.\r\n");
            }

            p += 64; // 更新 p 以指向下一个数据块
            if (p > MY_AUDIO_SAMPLES_LEN - 64) {
                osal_printk("master uapi_i2s_merge_write_by_dma end.\r\n");
                p = 0; // 重置 p 以循环播放音频数据
                break; // 跳出循环，等待下一次播放
            }
        }
    }
    return NULL;
}

static void i2s_entry(void)
{
    osal_task *task_handle = NULL;
    osal_kthread_lock();
    task_handle =
        osal_kthread_create((osal_kthread_handler)i2s_dma_master_task, 0, "I2sDmaMasterTask", I2S_TASK_STACK_SIZE);
    if (task_handle != NULL) {
        osal_kthread_set_priority(task_handle, I2S_TASK_PRIO);
    }
    osal_kthread_unlock();
}

/* Run the i2s_entry. */
app_run(i2s_entry);




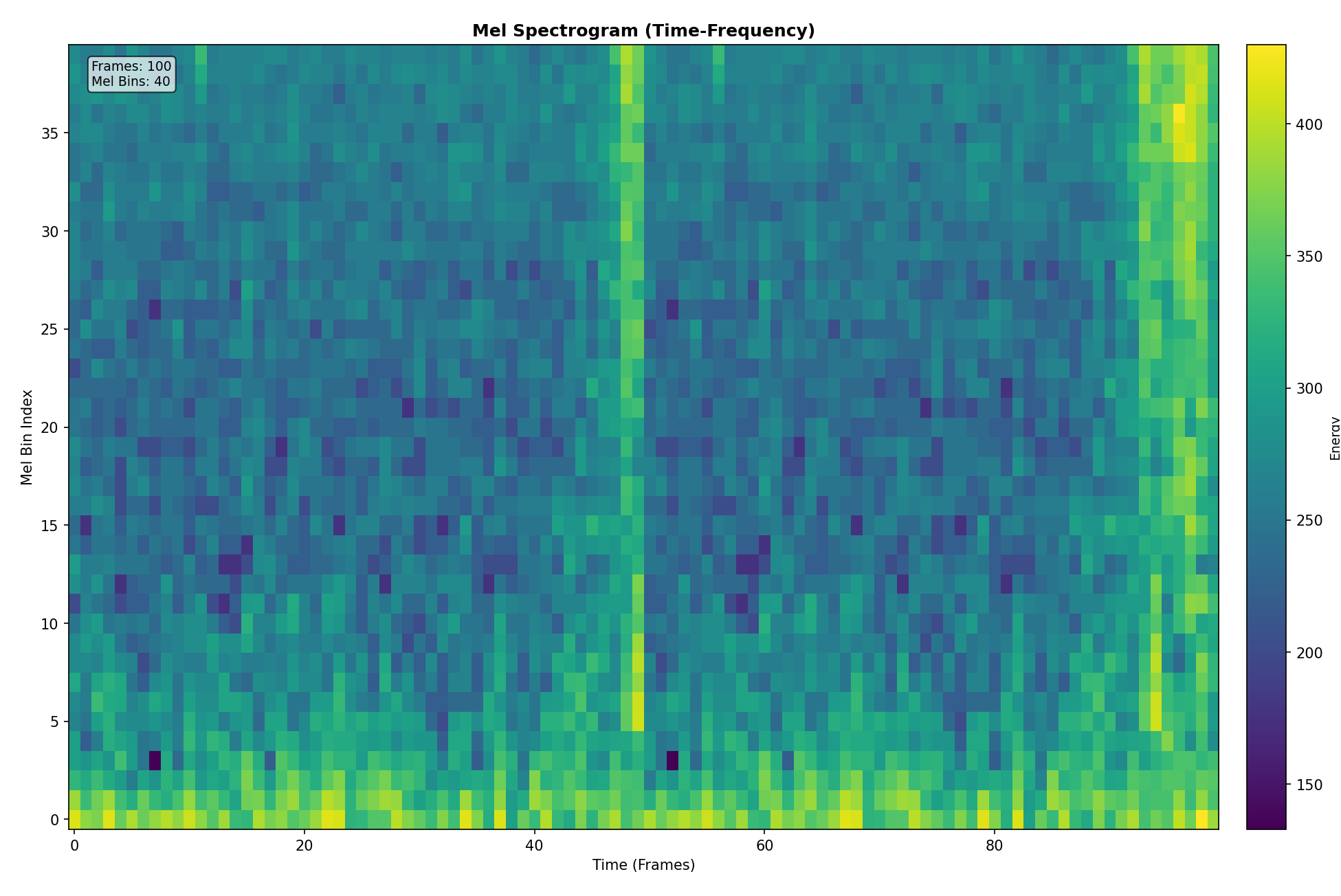

下一步准备开始数据采集打标签

做了一点不想做了，看了一些毕设的评论突然很着急，为什么他们进度那么快啊，我们学校都没什么通知，只是在1月30号让我们申请选题。为什么有的三月已经准备完成了，为什么有的上学期完成了，有点急啊。

唉，昨天发现一个喜欢的up主注销账号了，明明14号的时候才关注我，那时候真的很开心。新年也结束了，悲伤的氛围。又要找工作。又要准备毕设。真的烦死了。

前置工作

在开始部署之前，需要准备以下环境：

• WS63 (Hi3863) 开发环境

• TensorFlow Lite Micro 源码

• CMake 构建工具

CMakeLists 配置

set(TFLM_SRC_PATH "G:/HiSpark_SDK/fbb_ws63/tflite-micro")
set(TFLM_CORE_PATH "${TFLM_SRC_PATH}/tensorflow/lite")
set(FLATBUFFERS_DIR "G:/HiSpark_SDK/fbb_ws63/tflite-micro/tensorflow/lite/micro/tools/make/downloads/flatbuffers")
set(TFLM_COMPILER_PATH "${TFLM_SRC_PATH}/tensorflow/compiler")

set(RUY_PATHS
    "${TFLM_SRC_PATH}/tensorflow/lite/micro/tools/make/downloads/ruy"
)

set(GEMMLOWP_FIXEDPOINT_PATHS
    "${TFLM_SRC_PATH}/tensorflow/lite/micro/tools/make/downloads/gemmlowp"
    "${TFLM_SRC_PATH}/tmp/tflm-ws63/third_party/gemmlowp"
    "${TFLM_SRC_PATH}/third_party/gemmlowp"
)

set(FOUND_GEMMLOWP FALSE)
foreach(path ${GEMMLOWP_FIXEDPOINT_PATHS})
    if(EXISTS "${path}/fixedpoint/fixedpoint.h")
        set(GEMMLOWP_PATH ${path})
        set(FOUND_GEMMLOWP TRUE)
        message(STATUS "✓ Found gemmlowp at: ${path}")
        break()
    endif()
endforeach()

unset(PUBLIC_HEADER)

if(FOUND_GEMMLOWP)
    list(APPEND PUBLIC_HEADER
        ${GEMMLOWP_PATH}
    )
endif()

# 设置 PUBLIC_HEADER 变量以包含所有需要的头文件路径
list(APPEND PUBLIC_HEADER
    ${TFLM_SRC_PATH}
    ${TFLM_SRC_PATH}/tensorflow
    ${TFLM_SRC_PATH}/tensorflow/lite/kernels
    ${TFLM_CORE_PATH}
    ${TFLM_CORE_PATH}/micro
    ${TFLM_CORE_PATH}/micro/kernels
    ${TFLM_CORE_PATH}/micro/memory_planner
    ${TFLM_CORE_PATH}/micro/testing
    ${TFLM_CORE_PATH}/schema
    ${TFLM_CORE_PATH}/c
    ${TFLM_CORE_PATH}/core/api
    ${FLATBUFFERS_DIR}/include
    ${TFLM_CORE_PATH}/micro/kernels/cmsis_nn
    CACHE INTERNAL ""
)

list(APPEND PUBLIC_HEADER ${RUY_PATHS})

# 设置源文件
set(CORE_API_SOURCES
    "${TFLM_CORE_PATH}/core/api/flatbuffer_conversions.cc"
    "${TFLM_CORE_PATH}/micro/tflite_bridge/flatbuffer_conversions_bridge.cc"
    "${TFLM_CORE_PATH}/core/api/tensor_utils.cc"
)

set(SCHEMA_SOURCES
    "${TFLM_COMPILER_PATH}/mlir/lite/schema/schema_utils.cc"
    "${TFLM_CORE_PATH}/micro/flatbuffer_utils.cc"
)

set(C_API_SOURCES
    "${TFLM_CORE_PATH}/core/c/common.cc"
)

set(CORE_INTERPRETER_SOURCES
    "${TFLM_CORE_PATH}/micro/micro_allocator.cc"
    "${TFLM_CORE_PATH}/micro/micro_interpreter.cc"
    "${TFLM_CORE_PATH}/micro/micro_utils.cc"
    "${TFLM_CORE_PATH}/micro/micro_op_resolver.cc"
    "${TFLM_CORE_PATH}/micro/micro_context.cc"
    "${TFLM_CORE_PATH}/micro/micro_interpreter_context.cc"
    "${TFLM_CORE_PATH}/micro/micro_interpreter_graph.cc"
)

set(MEMORY_SOURCES
    "${TFLM_CORE_PATH}/micro/memory_planner/greedy_memory_planner.cc"
    "${TFLM_CORE_PATH}/micro/memory_planner/linear_memory_planner.cc"
    "${TFLM_CORE_PATH}/micro/arena_allocator/single_arena_buffer_allocator.cc"
    "${TFLM_CORE_PATH}/micro/arena_allocator/persistent_arena_buffer_allocator.cc"
    "${TFLM_CORE_PATH}/micro/arena_allocator/non_persistent_arena_buffer_allocator.cc"
    "${TFLM_CORE_PATH}/micro/arena_allocator/recording_single_arena_buffer_allocator.cc"
    "${TFLM_CORE_PATH}/micro/recording_micro_allocator.cc"
    "${TFLM_CORE_PATH}/micro/memory_helpers.cc"
    "${TFLM_CORE_PATH}/micro/micro_allocation_info.cc"
)

set(KERNEL_REGISTRY_SOURCES
    "${TFLM_CORE_PATH}/micro/kernels/kernel_runner.cc"
    "${TFLM_CORE_PATH}/micro/kernels/kernel_util.cc"
)

set(KERNEL_COMMON_SOURCES
    "${TFLM_CORE_PATH}/micro/kernels/fully_connected_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/softmax_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/conv_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/depthwise_conv_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/pooling_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/add_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/mul_common.cc"
)

set(KERNEL_IMPLEMENTATION_SOURCES
    "${TFLM_CORE_PATH}/micro/kernels/fully_connected.cc"
    "${TFLM_CORE_PATH}/micro/kernels/softmax.cc"
    "${TFLM_CORE_PATH}/micro/kernels/reshape.cc"
    "${TFLM_CORE_PATH}/micro/kernels/quantize.cc"
    "${TFLM_CORE_PATH}/micro/kernels/dequantize.cc"
    "${TFLM_CORE_PATH}/micro/kernels/dequantize_common.cc"
    "${TFLM_CORE_PATH}/micro/kernels/logistic.cc"
    "${TFLM_CORE_PATH}/micro/kernels/add.cc"
    "${TFLM_CORE_PATH}/micro/kernels/mul.cc"
    "${TFLM_CORE_PATH}/micro/kernels/concatenation.cc"
    "${TFLM_CORE_PATH}/micro/kernels/pooling.cc"
)

set(LOG_SOURCES
    "${TFLM_CORE_PATH}/micro/micro_log.cc"
    "${TFLM_CORE_PATH}/micro/tflite_bridge/micro_error_reporter.cc"
    "${TFLM_COMPILER_PATH}/mlir/lite/core/api/error_reporter.cc"
    "${TFLM_CORE_PATH}/micro/micro_time.cc"
)

set(TENSOR_UTILS_SOURCES
    "${TFLM_CORE_PATH}/kernels/internal/tensor_utils.cc"
    "${TFLM_CORE_PATH}/kernels/internal/quantization_util.cc"
    "${TFLM_CORE_PATH}/kernels/internal/common.cc"
    "${TFLM_CORE_PATH}/kernels/internal/portable_tensor_utils.cc"
    "${TFLM_CORE_PATH}/kernels/kernel_util.cc"
)

set(OTHER_SOURCES
    "${TFLM_CORE_PATH}/micro/micro_profiler.cc"
    "${TFLM_CORE_PATH}/micro/micro_resource_variable.cc"
    "${TFLM_CORE_PATH}/micro/test_helpers.cc"
)

# 合并所有源文件
set(ALL_TFLM_SOURCES
    ${CORE_API_SOURCES}
    ${SCHEMA_SOURCES}
    ${C_API_SOURCES}
    ${CORE_INTERPRETER_SOURCES}
    ${MEMORY_SOURCES}
    ${KERNEL_REGISTRY_SOURCES}
    ${KERNEL_COMMON_SOURCES}
    ${KERNEL_IMPLEMENTATION_SOURCES}
    ${LOG_SOURCES}
    ${TENSOR_UTILS_SOURCES}
    ${OTHER_SOURCES}
)

set(PUBLIC_HEADER "${PUBLIC_HEADER}" PARENT_SCOPE)

set(SOURCES "${SOURCES}"
    ${ALL_TFLM_SOURCES}
    "${CMAKE_CURRENT_SOURCE_DIR}/tflm_hello_world.cc"
    "${CMAKE_CURRENT_SOURCE_DIR}/hello_world_model.cc"
    "${CMAKE_CURRENT_SOURCE_DIR}/tflm_debug_log.cc"
    PARENT_SCOPE)

一、项目背景

在 WS63 嵌入式平台上验证 TensorFlow Lite Micro (TFLM) 的功能，确保 TFLM 库能够正确编译和运行。

二、文件结构

src/application/samples/tflm_hello_world/
├── CMakeLists.txt           # 构建配置，引用 TFLM 源码
├── tflm_hello_world.cc      # 主验证程序 ⭐
├── tflm_debug_log.cc        # 平台日志实现 ⭐
├── hello_world_model.cc     # TFLite 模型数据
├── test_cpp.cc              # C++ 编译测试
└── models/
    └── hello_world_model.h  # 模型头文件

三、核心设计决策

1. 日志系统设计（关键难点）

问题：TFLM 的 micro_log.cc 需要平台相关的 DebugLog 函数。

初次尝试（错误）

// ❌ 错误：使用可变参数
extern "C" void DebugLog(const char* format, ...) {
    va_list args;
    va_start(args, format);
    vsnprintf(buffer, sizeof(buffer), format, args);
    osal_printk("%s", buffer);
    va_end(args);
}

问题表现：输出乱码

• Tensor arena size: 10534308 bytes（应该是 6000）

• Status: 恖5（应该是 PASS/FAIL）

根因分析

// TFLM 的 micro_log.cc 调用方式
void VMicroPrintf(const char* format, va_list args) {
  DebugLog(format, args);  // ❌ 传递的是 va_list，不是 ...
}

最终方案（正确）

// ✅ 正确：接受 va_list 参数
extern "C" void DebugLog(const char* format, va_list args) {
    char buffer[512];
    vsnprintf(buffer, sizeof(buffer), format, args);
    osal_printk("%s", buffer);
}

// TFLM 还需要这个函数
extern "C" int DebugVsnprintf(char* buffer, size_t buf_size,
                              const char* format, va_list vlist) {
    return vsnprintf(buffer, buf_size, format, vlist);
}

2. 主程序设计

核心流程：

1. 加载模型 (GetModel)

2. 创建 OpResolver (注册 FullyConnected)

3. 创建 Interpreter (分配 TensorArena)

4. 分配张量 (AllocateTensors)

5. 获取输入/输出张量

6. 执行推理测试 (Invoke)

7. 验证结果

关键代码结构：

// 使用 int8 量化模型
input->data.int8[0] = golden_inputs_int8[i];
interpreter.Invoke();
float y_pred = (output->data.int8[0] - zero_point) * scale;

3. 内存管理

静态内存分配（嵌入式环境要求）：

constexpr int kTensorArenaSize = 6000;
static uint8_t tensor_arena[kTensorArenaSize];

避免使用 new/delete，防止动态内存分配问题。

四、遇到的问题与解决

问题	原因	解决方案
undefined reference to ‘DebugLog’	TFLM 需要平台日志函数	实现 DebugLog(const char*, va_list)
输出乱码、数值错误	函数签名不匹配（... vs va_list）	修正为接受 va_list 参数
编译时未发现源文件	CMakeLists.txt 缺少文件	添加 tflm_debug_log.cc 到 SOURCES

五、验证结果

测试 4 个输入值的 sin(x) 预测：

x (输入)	sin(x) 期望值	预测值	误差	状态
0.77	0.6961	0.6964	0.00031	✅ PASS
1.57	1.0000	0.9949	0.00508	✅ PASS
2.30	0.7457	0.7296	0.01610	✅ PASS
3.14	0.0016	-0.0083	0.00988	✅ PASS

所有测试误差 < 0.05（容差），验证成功！

六、关键经验

1. 仔细阅读 TFLM 头文件：debug_log.h 明确定义了 DebugLog 的签名

2. 理解调用链：MicroPrintf → VMicroPrintf → DebugLog(va_list)

3. 嵌入式适配要点：

   • 提供平台相关的 DebugLog 和 DebugVsnprintf
   • 使用静态内存分配
   • 使用 osal_printk 而非 printf

4. 量化模型处理：理解 scale 和 zero_point 的反量化公式

参考资源

• TensorFlow Lite Micro 官方文档

• WS63 Hi3863 开发指南
